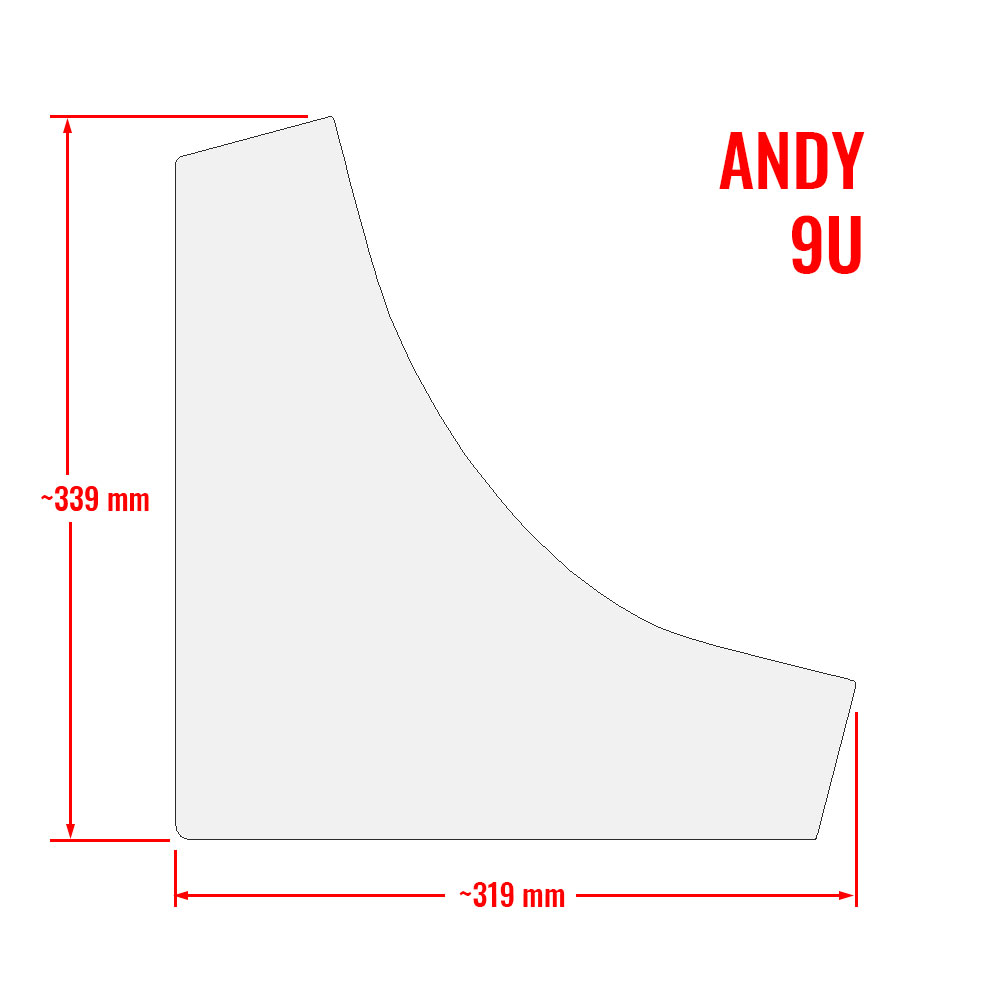

Walnut Side Panels for 9U Eurorack Case • Andy • UNPOWERED

These 9U sized wooden side panels are crafted from natural walnut and coated with two layers of polyurethane varnish for a beautiful, smooth finish.

Its 16mm thickness provides a sturdy stand for eurorack modules. Included in the package are 16 stainless steel screws and wrench for easy installation, as well as 8 self-adhesive felt feet to protect your surface.

The stand can be used in two different positions at the user's discretion, in which the angle of inclination of the central row of modules is slightly different. There is a connecting board at the bottom that makes the entire structure rigid.

This board can be used to place power. Depending on the selected number of HP, you can place 1 or 2 power supplies and powerboards with 15 or 24 connectors or flyingbas.

Unpowered. Choose your power supplies.

If you haven't found your power option, I'll be happy to help you. It is also possible to use a power supply option with voltages of only +-12 volts.

The power kitt consists of one or two Mean Well power supply units and one or two boards with 15 or 24 connectors for module connection.

Power board with 15 connectors, length 279 mm.
Power board with 24 connectors, length 413 mm.

You can choose one of the following power options:

1. 1x65W, 2x15 board for all size option

· 1 x PSU Mean Well RT-65B 65W (5V - 5A / +12V - 2.8A / -12V - 0.5A);
· 2 x Powerboards with 15 connectors;
· 1 x Power connector with switch;
· All necessary wires, connectors and fasteners.

Power cord not included.

Input: AC 110-230V
Output: DC +5V, +12V and -12V.
Output current:
+12V - 2,8A
-12V - 0,5A
+5V - 5A

. . . . .

2. 2x65W, 2x15 board for 104hp and more

· 2 x PSU Mean Well RT-65B 65W (5V - 5A / +12V - 2.8A / -12V - 0.5A);
· 2 x Powerboards with 15 connectors;
· 1 x Power connector with switch;
· All necessary wires, connectors and fasteners.

Power cord not included.

Input: AC 110-230V
Output: DC +5V, +12V and -12V.
Output current:
+12V - 5,6A
-12V - 1,0A
+5V - 10A

. . . . .

3. 1x65W, 1x24 board for 104hp and more

· 1 x PSU Mean Well RT-65B 65W (5V - 5A / +12V - 2.8A / -12V - 0.5A);
· 1 x Powerboards with 24 connectors;
· 1 x Power connector with switch;
· All necessary wires, connectors and fasteners.

Power cord not included.

Input: AC 110-230V
Output: DC +5V, +12V and -12V.
Output current:
+12V - 2,8A
-12V - 0,5A
+5V - 5A

. . . . .

4. 2x65W, 2x24 board for 126hp and more

· 2 x PSU Mean Well RT-65B 65W (5V - 5A / +12V - 2.8A / -12V - 0.5A);
· 2 x Powerboards with 24 connectors;
· 1 x Power connector with switch;
· All necessary wires, connectors and fasteners.

Power cord not included.

Input: AC 110-230V
Output: DC +5V, +12V and -12V.
Output current:
+12V - 5,6A
-12V - 1,0A
+5V - 10A

· · · · ·

5.

· 1 x PSU Mean Well RT-125B 125W (5V - 12A / +12V - 5A / -12V - 1A);
· 2 x Powerboards with 24 connectors;
· 1 x Power connector with switch;
· All necessary wires, connectors and fasteners.

Power cord not included.

Input: AC 110-230V
Output: DC +5V, +12V and -12V.
Output current:
+12V - 5A
-12V - 1A
+5V - 12A

------
Attention buyers from the Germany. The product price only includes delivery costs and does not include customs VAT. Contact me before purchasing to find out more.
